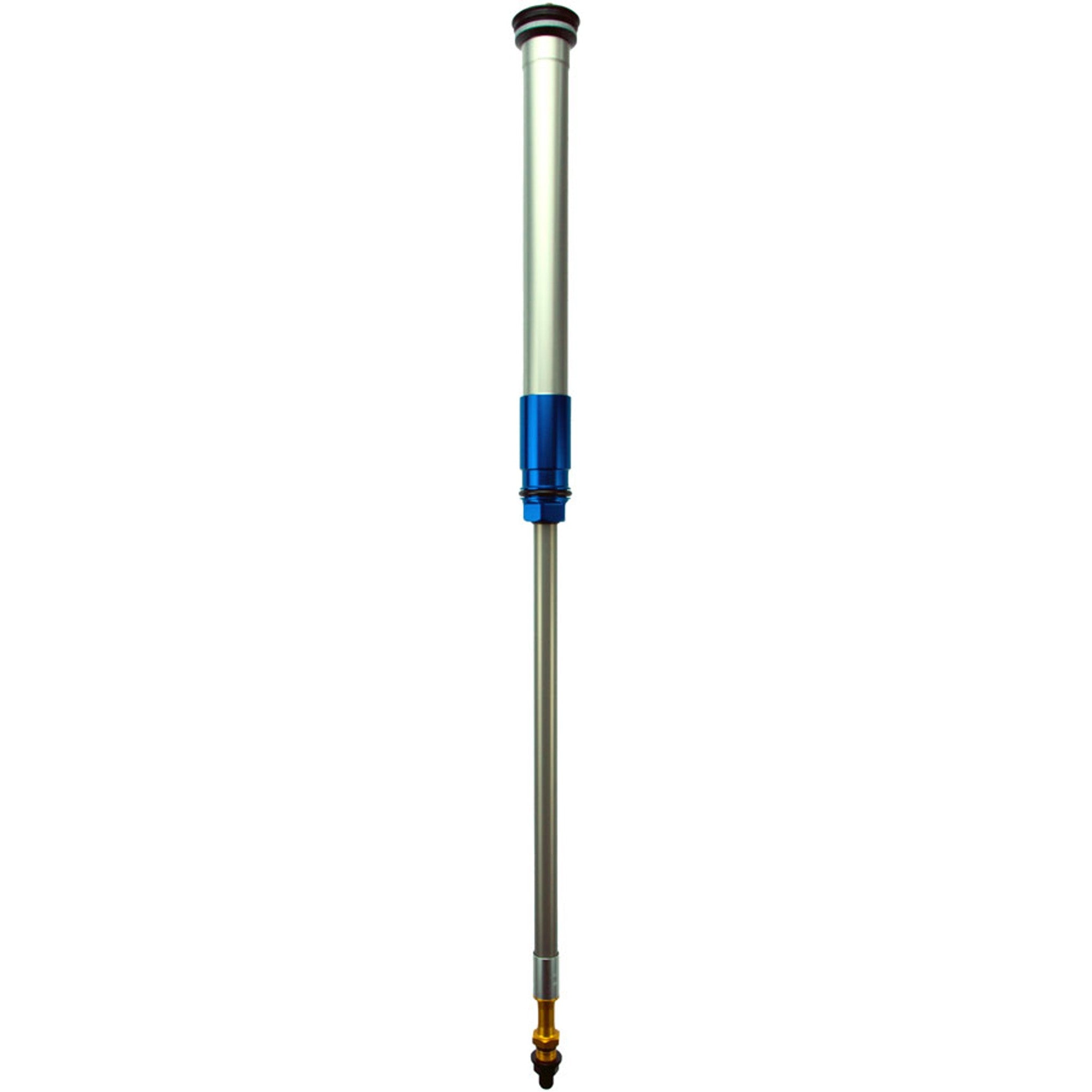

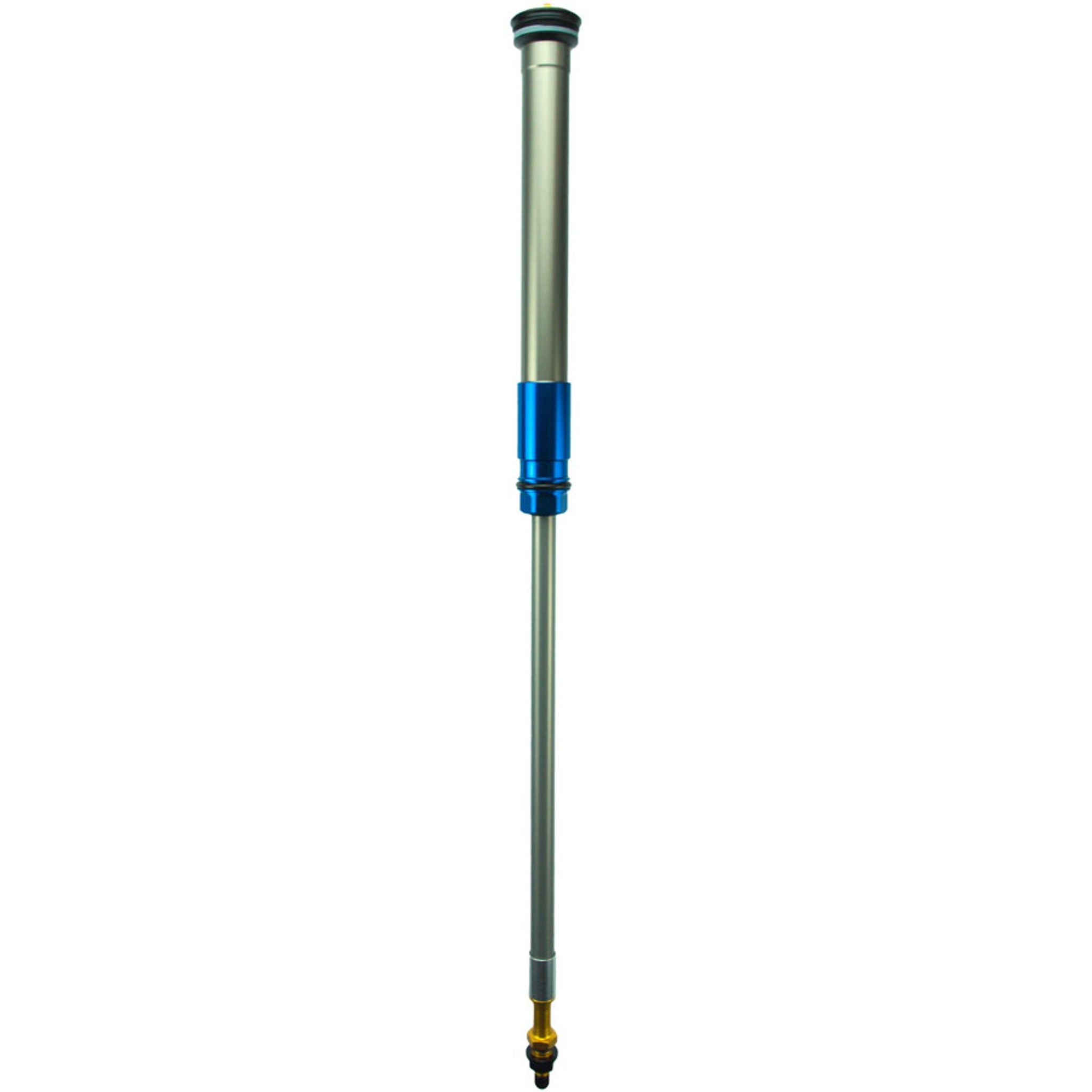

Complete Air Spring Cartridge Assembly

These complete air spring cartridges for Ohlins forks feature their three-chamber air spring system with two externally adjustable springs: adjust the main spring by adding air into the top valve, and control the progressivity by changing pressure on the bottom of the fork of the ramp-up chamber. The third chamber is the negative spring, which can futher be customized by removing or adding up to two volume spacers.

• Complete Ohlins 180mm air spring cartridge for the DH38 fork ONLY
• Features the three-chamber air spring system with two externally adjustable springs: adjust the main spring by adding air into the top valve, and control the progressivity by changing pressure on the bottom of the fork of the ramp-up chamber
• The third chamber is the negative spring, which can futher be customized by removing or adding up to two volume spacers (requires dissassembly)
• Cartridge ships with one negative volume spacer installed
• Includes a new bash cap to prevent damage to the air valve on the bottom
• Cartridge design allows easy travel change without removing the fork and allows the fork to be swapped between a coil spring setup
