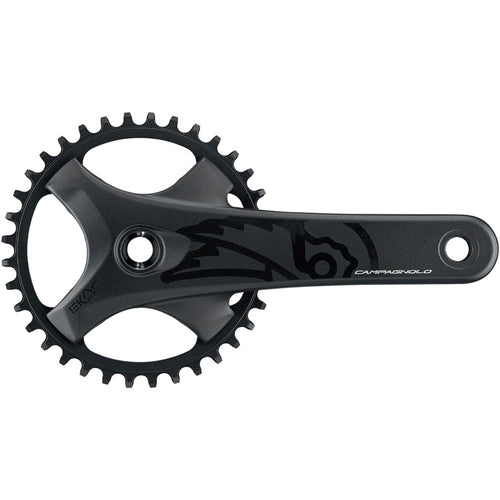

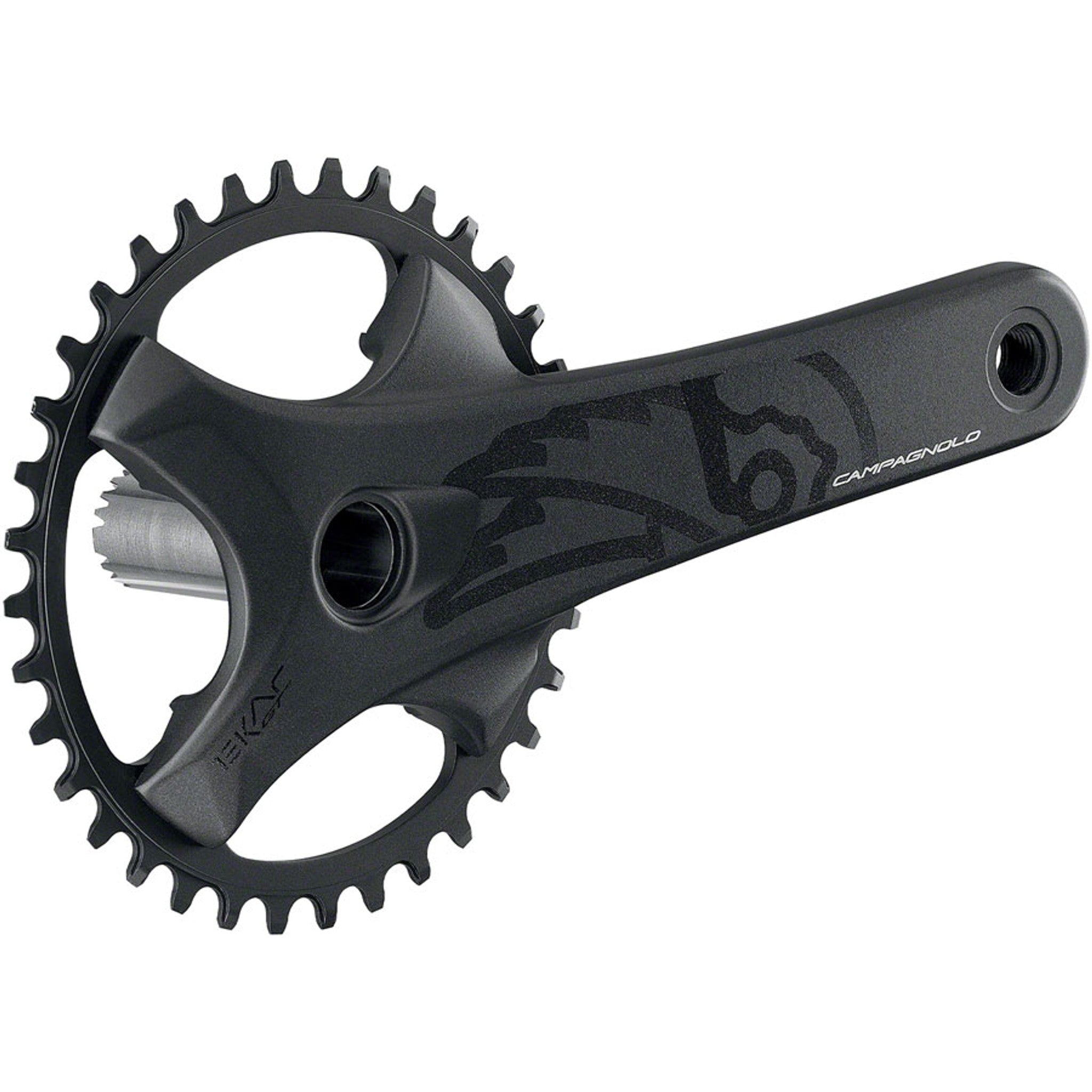

EKAR GT Crankset

The Campagnolo EKAR GT crankset features two aluminum cranks that are fitted with Ultra-Torque semi-axles in AISI 630 steel, in line with the clever material combinations of the entire EKAR GT groupset, with a view to producing components that are always light but deliver maximum efficiency and durability. ProTech™ technology joins the two semi axles inside the bottom bracket, with a single sturdy screw. The oversize stainless steel bearing race is on the crank, fitted onto the semi axle for maximum smoothness and resistance – and to make it easy to access for inspection and maintenance without having to dismantle the cups.

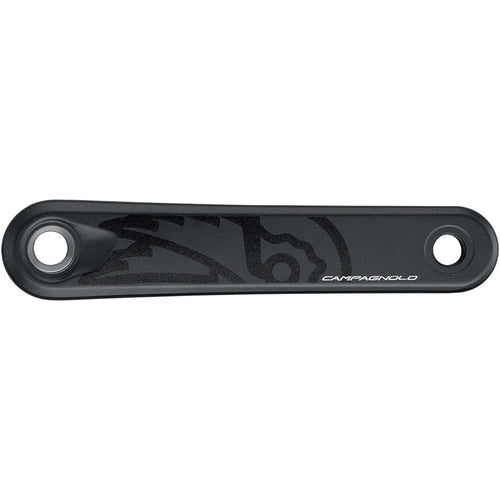

• 2-piece aluminum crank arms with Ultra-Torque semi-axles in AISI 630 steel for strength and light weight
• Semi-axles with Hirth ProTech™ technology are strong, efficient and self-aligning
• Lightweight resistant chainrings in premium 7075 aluminum are easily interchangeable: simply unscrew them off the four arms of the crank with no need to dismantle the crankset
• Optimized tooth design for efficient transmission and maximum chain reliability
• The four arms are arranged symmetrically for optimum load distribution and have a 104 mm bolt circle diameter
• 47.5mm Chainline
• 151mm Q-factor
